Dimensions:

• Size: 24" × 24" (fits standard 2x2 ceiling tile opening)
• Collection Capacity: Diverts water flow to external container
• Profile: Low profile within T-bar grid system
• Weight: Lightweight for rapid emergency deployment

Compatibility:

• Ceiling Type: Standard drop ceiling T-bar grid (suspended ceiling)
• Tile Size: 2x2 ceiling tile openings (24" × 24")
• Grid System: Standard 1" T-bar commercial ceilings
• Positioning: Replaces existing ceiling tile at leak location

Water Collection System:

• Function: Catches and diverts water to container below
• Flow Management: Channels water to collection point
• Container: User-provided (bucket, bin, container)
• Drainage: Gravity-based diversion to collection vessel

Installation Details:

• Tools Required: None (replaces ceiling tile)
• Install Time: 2-5 minutes per unit
• Staff Capability: Facility maintenance teams can install
• Removal: Easy removal when permanent repairs complete

Construction:

• Material: Commercial-grade water-resistant material
• Durability: Temporary to extended emergency use rated
• Temperature Safe: Standard building environment temperatures
• Reusable: Can be cleaned and stored for future emergencies

Applications:

• Office Buildings (HVAC condensation leaks)
• Retail Stores (roof leak protection)
• Warehouses (overhead pipe or roof leaks)
• Schools & Universities (facility emergency response)
• Hospitals & Medical Facilities (equipment protection)
• Restaurants (kitchen equipment leaks)
• Hotels (guest room and common area leaks)
• Manufacturing Facilities (production area protection)

Emergency Ceiling Leak Collection

Water leaking through drop ceiling tiles creates immediate damage risks—dripping onto floors creates slip hazards, damages equipment below, and disrupts operations. Traditional response involves placing buckets and waiting for repairs, but water still damages ceiling tiles and creates ongoing safety issues.

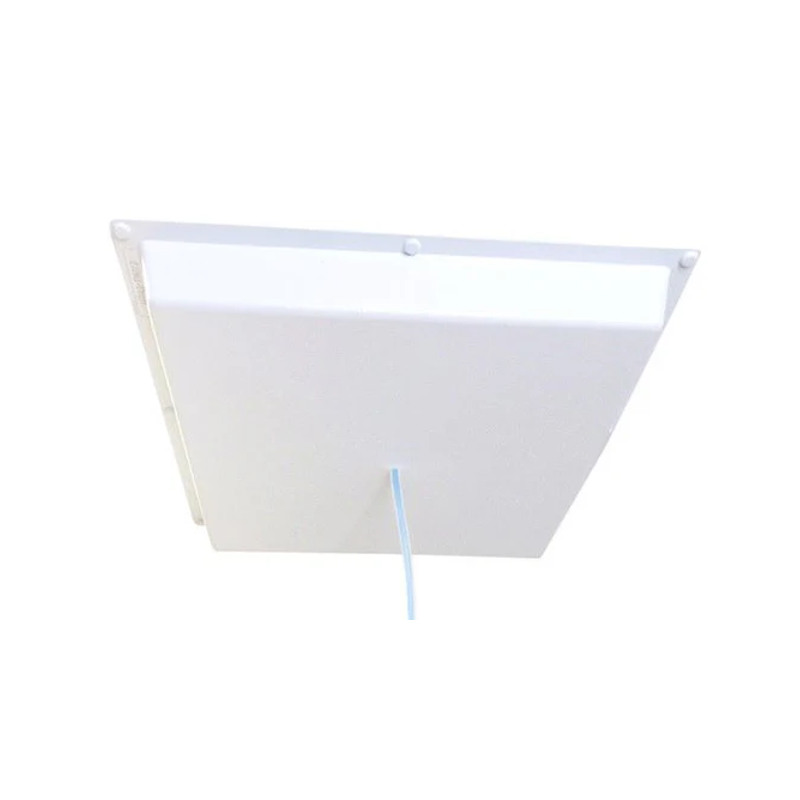

The ceiling tile leak diverter replaces the affected ceiling tile. Remove the wet, damaged tile and position the diverter in the T-bar grid opening. Water flowing from above enters the diverter, which channels it to a drain point where it flows into a collection container positioned below.

Facility teams position containers (buckets, bins) to catch diverted water. The system contains the leak, eliminates dripping, and protects the space immediately. Remains in place for days or weeks during repair scheduling without ongoing water damage or safety hazards.

Emergency Installation (5 Minutes)

Step 1: Identify Leak Source

Locate ceiling tile with active water leak. Assess leak severity and position collection container.

Step 2: Remove Damaged Ceiling Tile

Lift and remove wet ceiling tile from T-bar grid. Set aside for disposal.

Step 3: Position Leak Diverter

Place leak collection cover into ceiling tile opening. Ensure proper seating in T-bar grid.

Step 4: Position Collection Container

Place bucket or container below drainage point to collect diverted water.

Step 5: Monitor and Empty

Check collection container regularly. Empty as needed until permanent repairs complete.

Installation Time:

2-5 minutes emergency deployment

Tools Required:

None (simple ceiling tile replacement)

Multi-Unit Emergency:

Deploy across multiple leak points as needed during facility emergencies.

Emergency Leak Protection

Immediate Water Damage Prevention

Catches leaking water before it damages floors, equipment, inventory, or furnishings—minimizes business interruption and asset loss.

Quick Emergency Installation

Facility staff installs in minutes over existing ceiling tiles—no contractor needed, protects space immediately while repairs are arranged.

Diverts Water to Safe Collection

Channels water flow to container below—eliminates slip hazards, prevents floor damage, contains mess during repair delays.

Protects Critical Equipment

Safeguards computers, machinery, retail inventory, and sensitive equipment from overhead water damage—avoids costly replacements.

Fits Standard 2x2 Drop Ceiling Tiles

Universal design works with standard commercial T-bar grid systems—consistent solution for leak emergencies building-wide.

Temporary Solution During Repair Delays

Provides protection for days or weeks while permanent repairs are scheduled—maintains operations without facility shutdown.

Reduces Slip-and-Fall Liability

Eliminates water pooling on floors—mitigates workplace safety risks and potential legal exposure during leak situations.

Cost-Effective Emergency Response

Prevents thousands in water damage, equipment loss, and downtime costs—minimal investment protects major facility assets.
