In Stock

Elima-Draft 2-Way 24 x 24 Magnetic Air Deflector / Diffuser Cover

Configuration: Solid
Price:
Sale price$89.99Single Unit USD — Free shipping available
Product type: Magnetic air deflector cover for a ceiling diffuser
Outside dimensions: 24 inches long by 24 inches wide by 2.75 inches high
Fits: Most 24-inch-square commercial diffusers
Material: Polystyrene
Attachment: Magnetic, to a compatible metal grid or diffuser face
Power: None required
Not a filter: no MERV rating, no filtration media, no energy or airflow-balancing figures
Configuration: 2-way. Discharge leaves through two sides
SKU: ELI-2424-1-SOLID
Brand: SUPPLYOWL.COM

Product Description

The 2-way splits the discharge between two sides and closes the other two. It is the middle option in the family and, for most desk-under-a-diffuser complaints, the one that solves the problem without creating a new one.
Half the air one way, half the other, which means neither stream throws as hard as a 1-way does. You get the air off the person without turning it into a jet somewhere else.

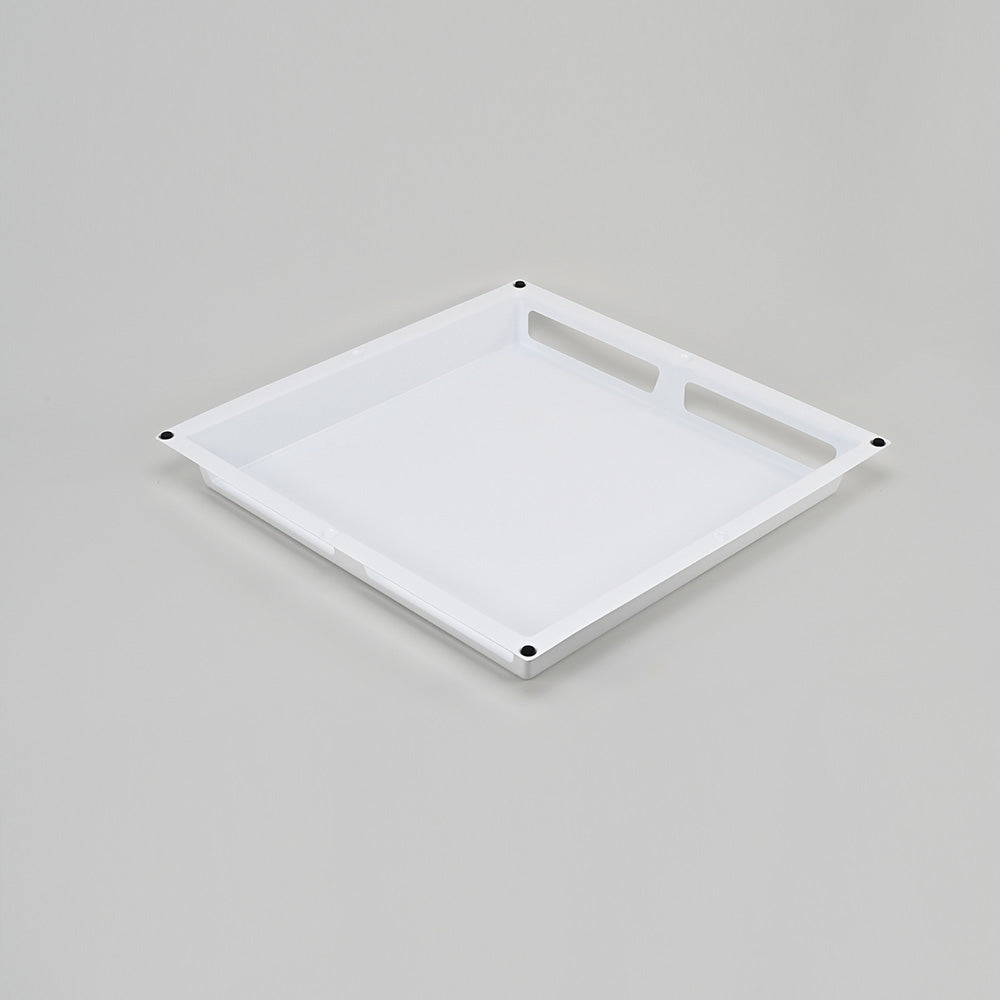

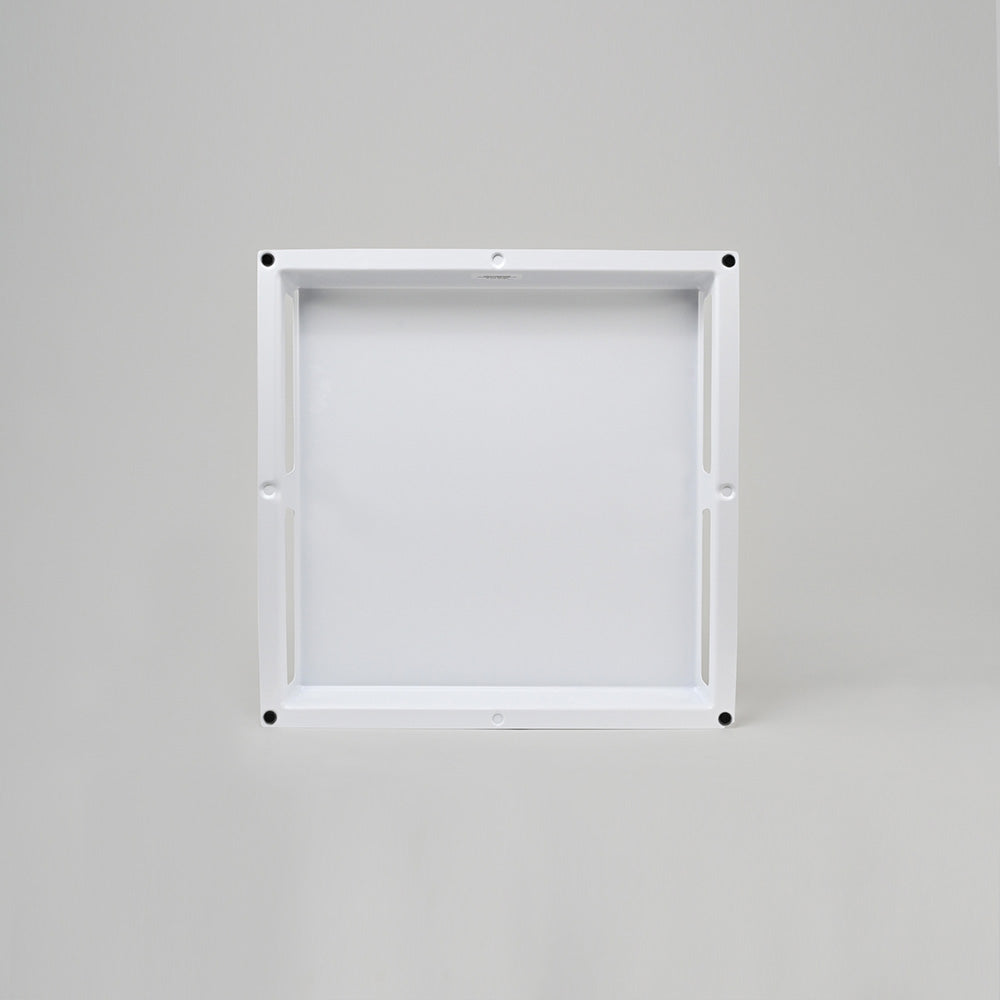

Standard body: 24 by 24 inches, 2.75 inches deep, polystyrene, held on magnets against a compatible steel grid or diffuser face.

What does a 2-way diffuser cover do?

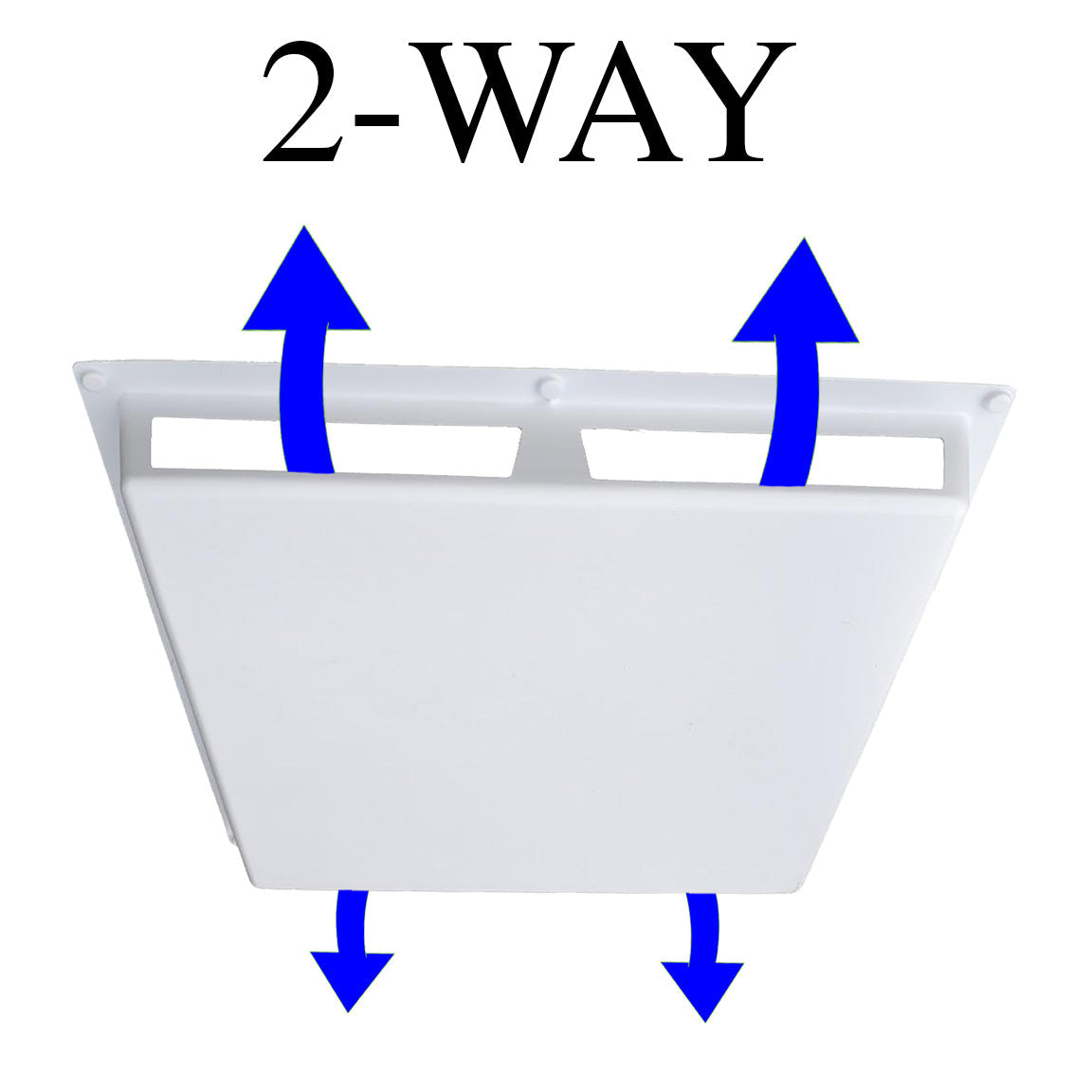

It opens two sides of the discharge and closes two. The supply volume is unchanged, but instead of spreading in four directions or firing out of one, it leaves through a pair of openings. Each stream carries roughly half the air, so it travels further than a 4-way spread but nothing like as far as a single-side 1-way. That middle setting is why this configuration suits so many ordinary complaints.

Should the two openings be opposite or adjacent?

Turning the cover decides it, so think about the room. Opposite openings suit a corridor, a long table or a run between desks, pushing air both ways along an axis and leaving the two flanks clear. Adjacent openings suit a corner, sending air into the two directions where the room actually opens up while closing the sides against a partition or a wall. Both are the same part, so the decision costs nothing but a moment's thought on the ladder. Work out which you want before fitting, then check the result from where the complaint came from.

Why pick 2-way over 1-way?

Because a 1-way sends everything one direction, and everything is a lot. Full discharge through a single opening throws hard, and on a diffuser with decent supply pressure that can create a draft fifteen feet away that nobody asked for. The 2-way halves the throw in each direction. If you have two reasonable places to send the air, splitting it is almost always the more comfortable result, and you are less likely to be back on the ladder. The same logic runs the other way: if only one direction is genuinely usable, splitting the air sends half of it somewhere unhelpful, and the 1-way is the better part.

Will it fit your diffuser?

The same three checks apply across this family. A nominal 24-inch-square diffuser, which is the standard ceiling grid module. At least 2.75 inches of clearance below the ceiling line for the depth of the cover. And a steel attachment surface, because the magnets need something to hold on to. Aluminium grids and painted plastic faces will not work. Test with a fridge magnet before ordering, and measure rather than assuming, because a tile that looks like a standard module can be an odd size in an older fit-out.

How does it install?

Offer it up, let the magnets take it, with the two openings facing where you decided. No tools, no fixings, nothing to make good afterwards. Orientation matters here as much as it does on the 1-way, so after fitting, stand in the spot that prompted the complaint and feel what has changed. If it is not right, lift and rotate. That is a ten-second job while you are still up there.

Does this change the system balance?

Barely. The outlet still passes the same volume, so the branch behaves much as it did. What changes is where that air lands and how far it carries. A single 2-way cover is a comfort adjustment. If you are fitting a dozen across a floor and redirecting most of the supply on a branch, mention it to whoever maintains the HVAC, because a lot of small adjustments add up to one noticeable change.

Is this a filter?

No. It redirects air and nothing more. No filter media, no MERV rating, no filtration claim. If the goal is cleaner air rather than better-aimed air, that is a different product.

Key Features

Splits the discharge across two sides

Two sides open, two closed

Openings can face opposite or adjacent depending on orientation

Fits most 24-inch-square commercial diffusers

24 inches long by 24 inches wide by 2.75 inches high

Polystyrene body

Magnetic attachment to a compatible steel grid or diffuser face

No tools, fixings or power required

Key Benefits

Universal Fit Guarantee

We guarantee this cover will fit any standard rectangular vent in sizes 10x4, 12x4, 12x6, or 14x6 inches, on both steel and aluminum registers. If it does not fit your rectangular vents, we will refund your purchase immediately.

Filter Quality Promise

Every filter is MERV-3 rated polyester that meets EPA standards for allergen capture. We guarantee the filter will maintain proper airflow when replaced monthly. If you experience any airflow issues with a fresh filter, contact us for immediate replacement.

Made in USA

Covers manufactured in the United States with quality materials. Filters produced to EPA MERV standards. Supporting American jobs while ensuring the highest quality for your family's health.

Expert Health & HVAC Support

Questions about allergen reduction, filter maintenance, MERV ratings, or installation? Our knowledgeable team understands both indoor air quality and HVAC systems. Real people who care about your family's breathing and health.

Technical Specifications

Technical Specifications
Supply Owl SKU
ELI-2424-2-WAY
Workbook item description
Elima-Draft 2-WAY Magnetic Commercial/Residential Vent Cover/Diffuser 24" x 24"
Shopify price
$89.99 USD
Configuration
2-way, two-side discharge
Outside dimensions
24 in L x 24 in W x 2.75 in H
Material
Polystyrene
Attachment
Magnetic
Fits
Most 24-inch-square commercial diffusers
Provisional manufacturer cross-reference
ELMDFTCOM2DEF4226, to be confirmed
Filtration
None. Not a MERV-rated product
Power
None required
Application Guide

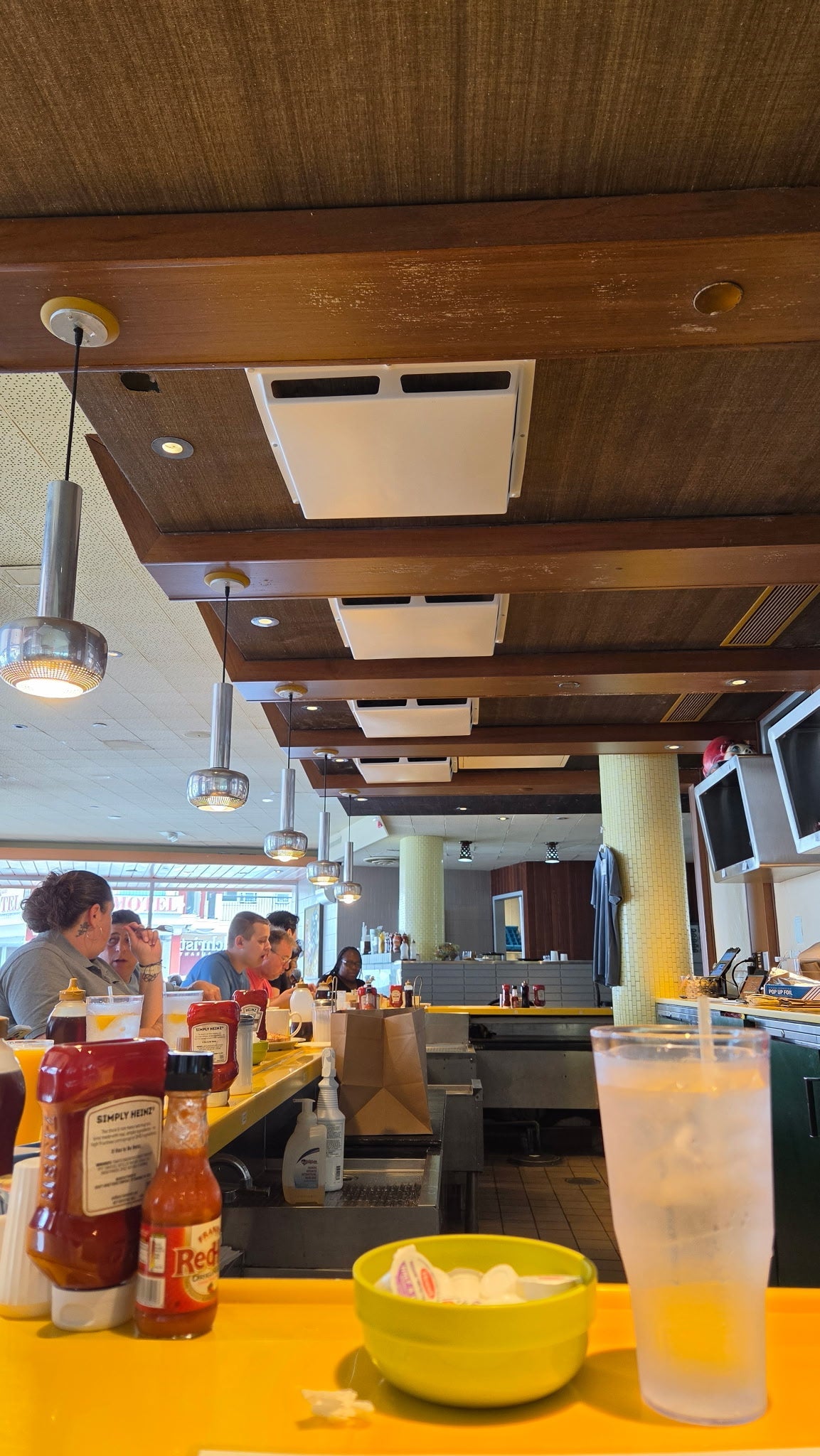

Offices where a ceiling diffuser sits directly over a desk
Meeting rooms with a cold spot at one end of the table
Schools and classrooms with fixed seating under a diffuser
Clinics and waiting areas where people sit still for long periods
Open-plan floors where one workstation gets the worst of the supply air
Retail and reception positions a person cannot move away from
Configuration Selection Guide
Air needs to stop at this outlet
solid
Air needs to go one way, away from a person
1-way
Two sides clear, two sides blocked
2-way
Only one side is the problem
3-way, which closes that side and leaves three open
One jet is too strong and needs spreading
4-way
The grid does not line up with the room
45-degree
Why Choose the 2-way 24 x 24 cover
A $89.99 fix for a comfort complaint that otherwise reaches the HVAC contractor
Magnetic attachment, so no tools, no fixings and no holes in the ceiling
Comes off as easily as it goes on, which matters for seasonal use and for tenants
Six airflow configurations on the same body, so the fix matches the problem
No electrical work and nothing to rebalance

Frequently Asked Questions

What does the 2-way cover do?

A: It opens two sides of the diffuser and closes two, splitting the discharge between them. Each stream carries roughly half the air, so it throws less hard than a 1-way.

Can the two openings face opposite directions?

A: Yes. Rotating the cover sets whether the open sides sit opposite each other, which suits a corridor or a long table, or adjacent, which suits a corner.

Why choose 2-way instead of 1-way?

A: A 1-way sends the full discharge through one opening, which throws hard and can create a draft further away. Splitting it halves the throw in each direction.

Does this fit a residential vent?

A: It depends on the opening and the surface, not on the building. The cover is sized for a nominal 24-inch-square diffuser and holds magnetically on steel. A home with that diffuser and a steel face can take it. A standard residential register cannot.

Is this an air filter?

A: No. It changes where the air goes. There is no filter media, no MERV rating and no filtration claim. Filtration covers are a separate product.

Will it damage the diffuser or the ceiling?

A: There is nothing to fix or drill. It holds on magnets and lifts off by hand, which is why it suits leased space and seasonal use.

Order Includes

One Elima-Draft magnetic air deflector cover in the selected configuration
24 inches long by 24 inches wide by 2.75 inches high, polystyrene
No tools, fixings or power supply required or included
Diffuser, grid and any mounting hardware are not included
$89.99
