In Stock

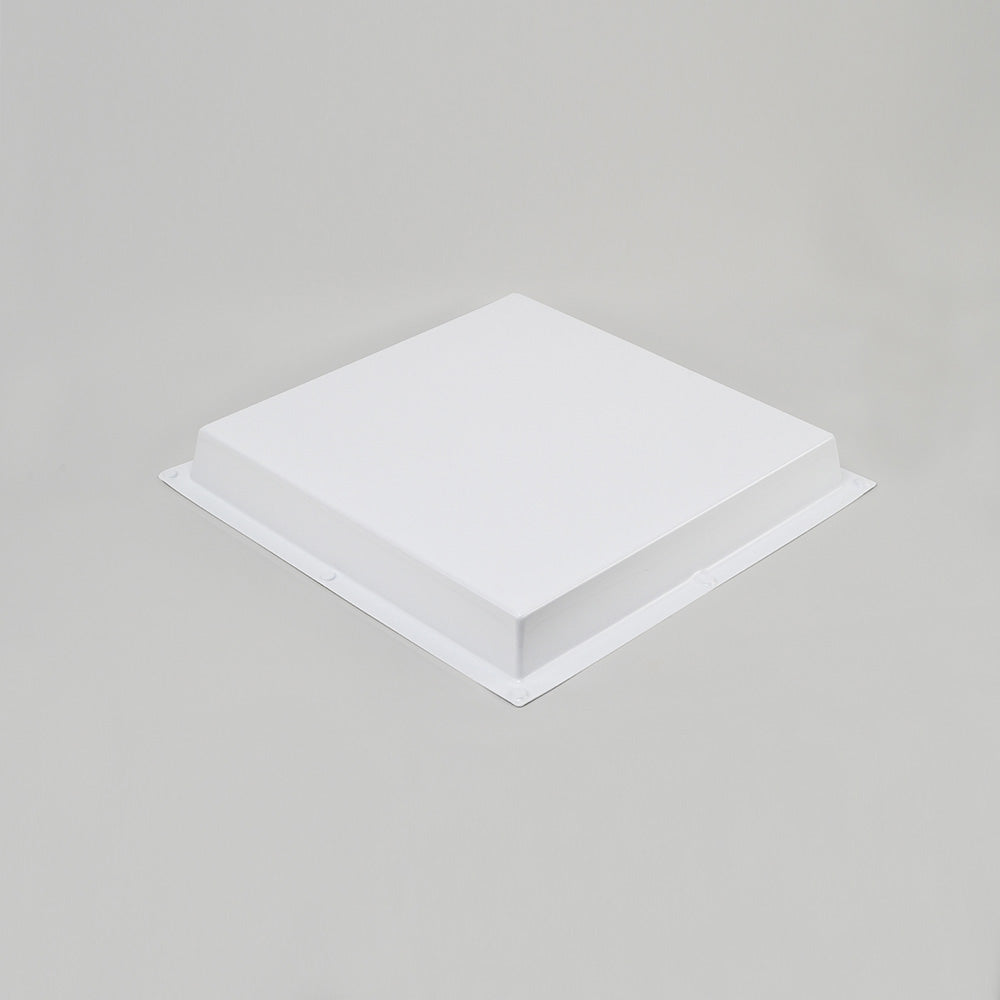

Elima-Draft Solid 24 x 24 Magnetic Air Deflector / Diffuser Cover

Configuration: Solid
Price:
Sale price$89.99Single Unit USD — Free shipping available
Product type: Magnetic air deflector cover for a ceiling diffuser
Outside dimensions: 24 inches long by 24 inches wide by 2.75 inches high
Fits: Most 24-inch-square commercial diffusers
Material: Polystyrene
Attachment: Magnetic, to a compatible metal grid or diffuser face
Power: None required
Not a filter: no MERV rating, no filtration media, no energy or airflow-balancing figures
Configuration: Solid. Closes the covered outlet rather than opening a direction
SKU: ELI-2424-1-SOLID
Brand: SUPPLYOWL.COM

Product Description

Someone sits under that diffuser all day and they are cold. You have moved the desk, you have asked facilities, and the air still comes straight down. The solid Elima-Draft cover closes that outlet off.
It is a 24 by 24 inch polystyrene cover, 2.75 inches deep, that holds on magnets against a compatible steel grid or diffuser face. No tools, no fixings, no electrician. It comes off the same way it went on.
This is the only configuration in the family with no opening. The other five redirect the air to one, two, three or four sides, or throw it at 45 degrees. If you want the supply air to carry on but go somewhere else, one of those is the better buy.

What does a solid diffuser cover actually do?

It stops the air coming out of that one outlet. The cover sits over the diffuser face and the discharge path is closed, so the supply air that used to drop into that spot stays in the duct and leaves through the other outlets on the run. People reach for this when the problem is not where the air goes but that there is any air at all over one desk.

When is solid the right choice, and when is it not?

Solid suits the single stubborn outlet. One diffuser, one cold complaint, a large room with plenty of other supply. It is the wrong choice if that diffuser is doing real work, because closing it pushes its share of the air to neighbouring outlets and you may just move the complaint. If the air only needs to stop hitting one person, the 3-way closes a single side and leaves the rest open.

Will it fit your diffuser?

Two measurements decide it. The diffuser needs to be a nominal 24-inch square, which is the standard ceiling grid module in most commercial buildings. And you need 2.75 inches of clearance below the ceiling line for the depth of the cover. The third check is not a measurement: the magnets need steel. Plenty of grids and diffuser faces are aluminium or painted plastic, and a magnet will not hold on either. Put a fridge magnet against it before you order.

How does it install?

You lift it up and let the magnets take it. That is the whole procedure. There is nothing to screw, clip or wire, and nothing is left behind when you take it off. Check the manufacturer's guidance for orientation, and work from a proper platform. A 24-inch square is awkward overhead even at this weight.

Does covering a diffuser affect the rest of the system?

It can, and anyone telling you otherwise is guessing. Air that cannot leave through one outlet leaves through the others, which raises flow at those positions. On one diffuser in a big open floor, nobody notices. Close several on the same branch and you may find a new draft somewhere else, or a fan working against more resistance than it was balanced for. One cover is a comfort fix. A dozen is a design change, and that deserves a word with your HVAC contractor.

Solid or one of the directional covers?

Ask what you want the air to do. If the answer is nothing at this outlet, solid. If the answer is carry on, just not at that person, you want a directional cover, and which one depends on where there is space for the air to go. One clear side, the 1-way. Two, the 2-way. One problem side and three fine ones, the 3-way. A jet that needs softening, the 4-way. A grid running diagonally to the room, the 45-degree.

Is this a filter?

No, and it is worth being plain about it because the two products look similar on a shelf. This cover changes where air goes. It has no filter media, no MERV rating and no filtration claim of any kind. If you are trying to clean the air rather than move it, you want a filtration cover, which is a different product with a different job and a different price.

Key Features

Closes the covered outlet, with no directional opening

Fits most 24-inch-square commercial diffusers

24 inches long by 24 inches wide by 2.75 inches high

Polystyrene body

Magnetic attachment to a compatible steel grid or diffuser face

No tools, fixings or power required

Removes by hand, leaving nothing behind

One of six airflow configurations on the same body

Key Benefits

Universal Fit Guarantee

We guarantee this cover will fit any standard rectangular vent in sizes 10x4, 12x4, 12x6, or 14x6 inches, on both steel and aluminum registers. If it does not fit your rectangular vents, we will refund your purchase immediately.

Filter Quality Promise

Every filter is MERV-3 rated polyester that meets EPA standards for allergen capture. We guarantee the filter will maintain proper airflow when replaced monthly. If you experience any airflow issues with a fresh filter, contact us for immediate replacement.

Made in USA

Covers manufactured in the United States with quality materials. Filters produced to EPA MERV standards. Supporting American jobs while ensuring the highest quality for your family's health.

Expert Health & HVAC Support

Questions about allergen reduction, filter maintenance, MERV ratings, or installation? Our knowledgeable team understands both indoor air quality and HVAC systems. Real people who care about your family's breathing and health.

Technical Specifications

Technical Specifications
Supply Owl SKU
ELI-2424-1-SOLID
Workbook item description
Elima-Draft Solid Magnetic Commercial/Residential Vent Cover/Diffuser 24" x 24"
Shopify price
$89.99 USD
Configuration
Solid, no airflow opening
Outside dimensions
24 in L x 24 in W x 2.75 in H
Material
Polystyrene
Attachment
Magnetic
Fits
Most 24-inch-square commercial diffusers
Provisional manufacturer cross-reference
ELMDFTCOMSLD3471, to be confirmed
Filtration
None. Not a MERV-rated product
Power
None required
Application Guide
Offices where a ceiling diffuser sits directly over a desk
Meeting rooms with a cold spot at one end of the table
Schools and classrooms with fixed seating under a diffuser
Clinics and waiting areas where people sit still for long periods
Open-plan floors where one workstation gets the worst of the supply air
Retail and reception positions a person cannot move away from
Configuration Selection Guide
Air needs to stop at this outlet
solid
Air needs to go one way, away from a person
1-way
Two sides clear, two sides blocked
2-way
Only one side is the problem
3-way, which closes that side and leaves three open
One jet is too strong and needs spreading
4-way
The grid does not line up with the room
45-degree
Why Choose the solid 24 x 24 cover
A $89.99 fix for a comfort complaint that otherwise reaches the HVAC contractor
Magnetic attachment, so no tools, no fixings and no holes in the ceiling
Comes off as easily as it goes on, which matters for seasonal use and for tenants
Six airflow configurations on the same body, so the fix matches the problem
No electrical work and nothing to rebalance

Frequently Asked Questions

What does the solid Elima-Draft cover do?

A: It closes the covered outlet so supply air leaves through the other diffusers on the run instead. The other five configurations in the family redirect the air rather than stopping it.

Will closing one diffuser upset the system?

A: One outlet in a large space is usually fine. Closing several on the same branch raises flow at the remaining outlets and can create a draft elsewhere, so treat a floor-wide rollout as a design change and ask your HVAC contractor.

Does it install without tools?

A: Yes, where the surface suits it. The cover holds on magnets against a compatible steel grid or diffuser face. Test the surface with a magnet first, because aluminium and painted plastic will not hold it.

Does this fit a residential vent?

A: It depends on the opening and the surface, not on the building. The cover is sized for a nominal 24-inch-square diffuser and holds magnetically on steel. A home with that diffuser and a steel face can take it. A standard residential register cannot.

Is this an air filter?

A: No. It changes where the air goes. There is no filter media, no MERV rating and no filtration claim. Filtration covers are a separate product.

Will it damage the diffuser or the ceiling?

A: There is nothing to fix or drill. It holds on magnets and lifts off by hand, which is why it suits leased space and seasonal use.

Order Includes

One Elima-Draft magnetic air deflector cover in the selected configuration
24 inches long by 24 inches wide by 2.75 inches high, polystyrene
No tools, fixings or power supply required or included
Diffuser, grid and any mounting hardware are not included
$89.99
