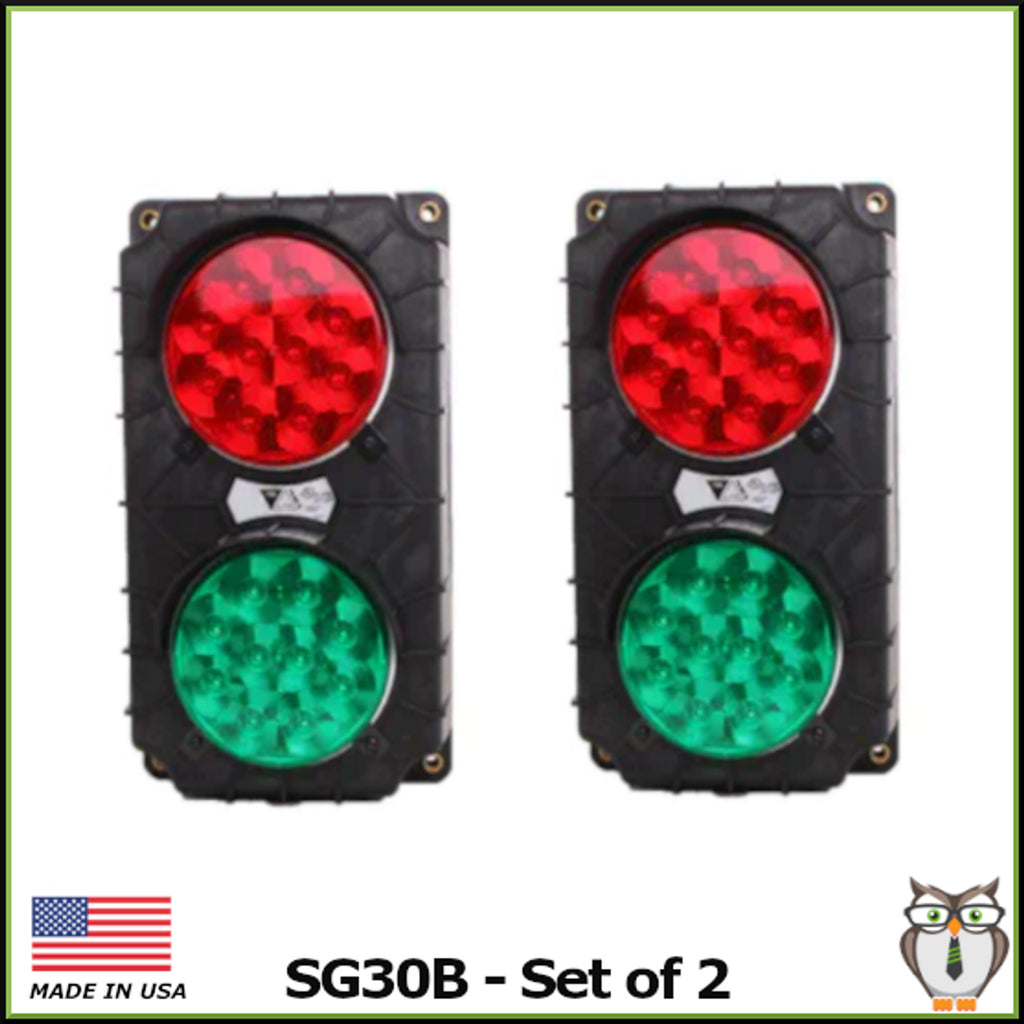

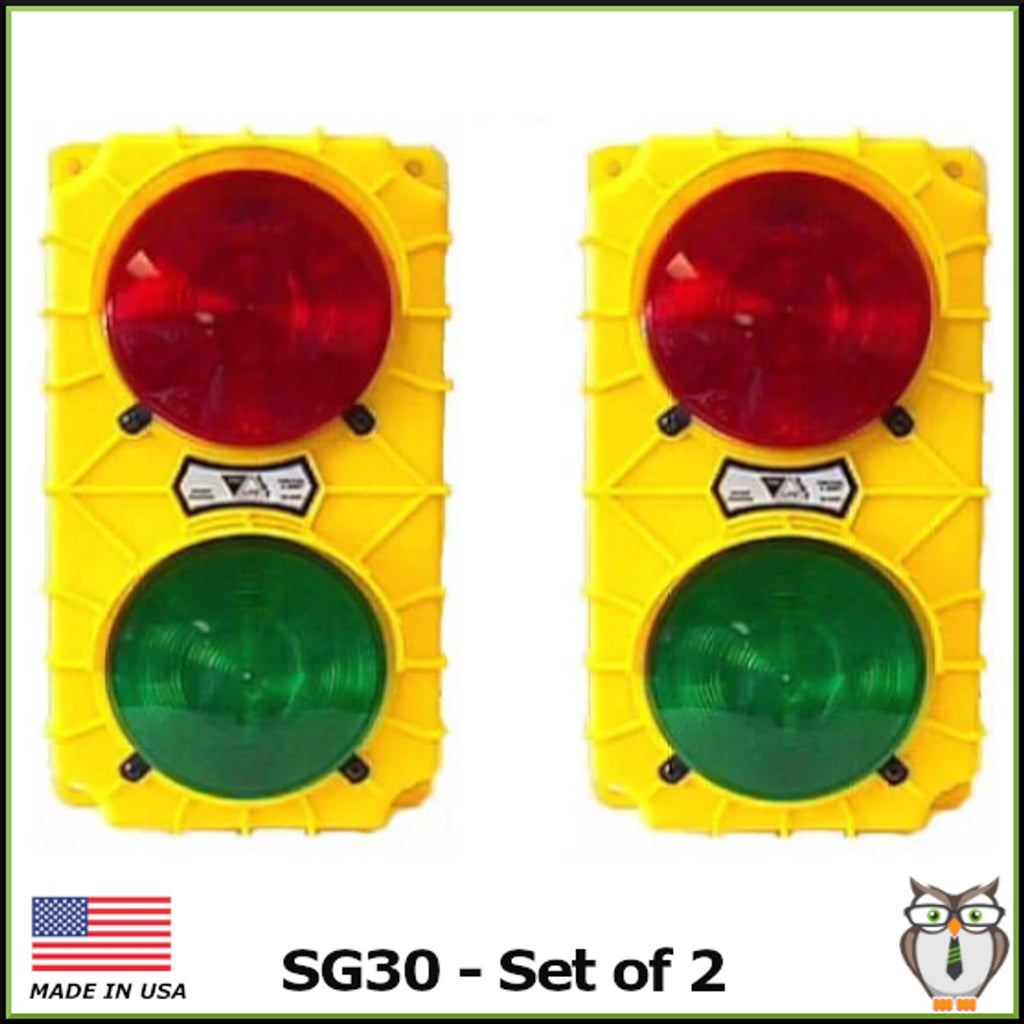

TriLite Stop and Go Loading Dock Safety Light Set SG30

Enhance worker safety and streamline communication at your loading docks with the "Stop & Go" Loading Dock Safety Light Set. Designed as the ultimate visual communication package, this set includes two light units, the SG10 and SG20, for both inside and outside dock installation. The units are connected by a six-foot communication cable and operated using a convenient toggle switch that controls the lights. For installations utilizing a remote switch, the SG30 option is available without the toggle switch (indicated by "NS" in the part number). Please note that Tri Lite does not offer remote switches but they can be obtained from electrical contractors or installation professionals.

How it Works:

When a truck is securely parked at the loading dock, the inside light turns green, signaling to forklift drivers that it is safe to enter the trailer.
While the green light is on inside the building, the outside light remains red, indicating that the truck should not be moved.
Once the truck is unloaded, the inside light switches to red, warning forklift drivers to stay away from the truck.
Simultaneously, the outside light turns green, signaling that it is now safe for the truck to pull away.

Power Draw:
12 VDC Incandescent - 4.34 Amps
12 VDC LED - 0.14 Amps
24 VDC Incandescent - 2.2 Amps
24 VDC LED - 0.16 Amps
115 VAC Incandescent - 0.42 Amps
115 VAC LED - 0.08 Amps

Features
Features:
Immediate and easily recognizable direction
2 housing colors: Yellow or Black
Durable housing construction
Available with incandescent or LED lamps
Indoor/Outdoor use
IP54 rating
